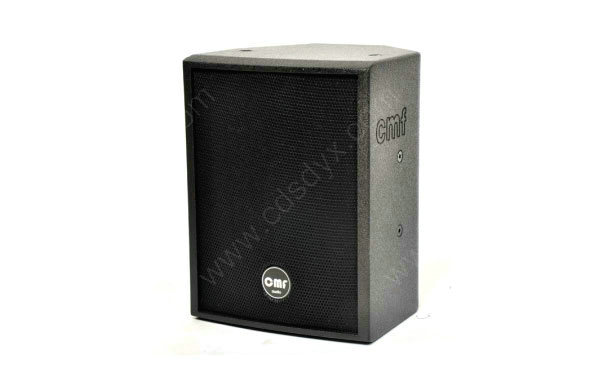

8寸钕磁同轴单元及音响

H同轴系列音箱适合用于固定安装的慢摇吧及各种酒吧、多功能厅、商务包房的主扩声系统。其系列单元采用世界高级扬声器及高级进口比利时夹板的搭配,为了还原音乐的真实效果
内容介绍

  同轴H系列音箱介绍:

  H Series coaxial speakers introduced:

  H同轴系列音箱采用誉为磁王的第三代稀土材料制作。 H同轴系列音箱适合用于固定安装的慢摇吧及各种酒吧、多功能厅、商务包房的主扩声系统。其系列单元采用世界高级扬声器及高级进口比利时夹板的搭配,为了还原音乐的真实效果,箱体采用不对称型设计及高、低音同一直线型输出,解决了声场相位不一致等问题以及人声与音乐声的衔接问题,并且解决了覆盖面不够且人声合一声音传输速度快、高音损耗小的特性,有效的降低中高音失真度,H同轴系列采用了二分频全频设计、以及特别适合商务包房以及大厅的主扩声、主要适合慢摇吧、大厅的主扩声,低频刚性好、能量足、力度感强、声音干净圆润,高音细腻、清晰、失真小还原度高,外型新颖搭配黑色棉网整个流线型线条完美。

  Thifd generation rare earth materials H coaxial speakers speakers using knownas magnetic king,H Series coaxial speakers suitable for fixed installation, window and various bars, function rooms, business rooms of the main PA system. The family unit using the world imports of high-level speakers and senior splint with Belgium, in order to restore the true effect of music, the asymmetric cabinet design and high output linear bass the same to solve the inconsistent sound field phase of the human voice and other issues as well as music the interface between the sound and not enough to solve the coverage of the unity of the human voice and the voice transmission speed, low loss characteristics of the treble, midrange and treble effectively reduce distortion, H coaxial series features two full-band frequency design, and special packages for business room and main hall PA, mainly for slow shake it, the hall's main sound reinforcement, low-frequency rigid, full of energy, intensity and strong sense, the sound clean and smooth, delicate treble, clear and distortion reduction is high, novel appearance matching black cotton net the streamlined perfect.

  一、特性:

  Features

  *二路分频全频设计。

  Road Design full range frequency

  *不等对称型箱体设计。

  Ranging from symmetrical cabinet design

  二、箱体:

  Box

  黑色进口耐磨防水细点油漆

  Black imported wear resistant paint

  声场扩散圆孔铁网+棉网

  Network Rail+Web hole diffusion sound field

  全箱所用15MM进口桦木夹板

  15MM top boxes used in all Brich plywood

  可竖起吊挂(悬吊)以及横吊多样式。

  Can be put up hanging (suspension) and more horizontal hanging style

  三、描述:

  Descriptions

  其箱使用1个大功率8’’低音单元和1个1’压缩驱动器,采用特制的纳米合成材料+还原声学材料混合而成声音元素,能使高音发挥最大的潜能,结合低频厚实有力、弹性十足、声压较大且柔和圆润,分频设计能在大功率时自动校正相位,防止错位以及内设保护网络,能起到自动适应自然调整频点漂移,输出声压高达122dB以及80°恒指扩散多角度输出。

  The box uses a high-power 8''woofer and a 1''compression driver, using a special nano-materials, synthetic materials + a mixture of sound reduction acoustical elements can maximize the potential of treble, combined with powerful low-frequency thick, Flexible, large and soft, mellow sound pressure, frequency designed to automatically correct the phase in the high-power, and offers protection to prevent the dislocation network, can play automatically adapt to the natural adjustment of frequency drift, the output up to 122dB sound pressure and the Hang Seng Index Proliferation of multi-angle 80° output

  四、技术规格:

  Technical Specifications

  POWER RATED额定功率: 200W

  RATED IMPEDANCE额定阻抗: 8Ω

  FREQUENCY RANGE 频率响应: 65Hz-20KHz

  SENSITIVITY 1M/1W 灵敏度: 95dB±1dB

  MAX SPL 最大声压: 122dB

  NOMINAI DIRECTIVITY标称覆盖角(- 6dB 角): 80°× 80°

  CELL FABRIC单元结构: 1X8’’钕磁低音 1X1’钕磁高音

  THECROSS0VER POINT分频点: 14000Hz,具完美相位响应,

  HANGER吊挂件: 6个M8 螺丝吊挂点

  CONNECTOR接插件: 两个4芯SPEAKON插座 1+1-

  INDOOR室内: 适用

  SIZE(mm)(W x D x H)尺寸: 270X270X365MM

  NET WEIGHT KG 净重: 8KG

  REC OMMEND HPF推荐高通滤波器: 55 Hz 全频(24 dB/oct 巴特沃夫BW)

  80~120 Hz(与超低音箱结合使用)

  REC OMMENDED AMPLIFIER推荐功放 400W(无削波,符合指定频响
